::DAHUA:: |
| |
|
|
| |
|
DAHUA HDCVI CAMERA 1 Megapixel Cmos |
|
:: Dahua Camera 1 Megapixel :: |
| HAC-HFW1100M |
 |
|
|
|
HAC-HDW1100M | |
Overview |
|
>1/2.9" 1Megapixel CMOS
>25/30fps@720P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC
>3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V |
|
 | |
| Model |
DH-HAC-HDW1100MP |
DH-HAC-HDW1100MN |
| Camera |
| Image Sensor |
1/2.9" 1Megapixel CMOS |
| Effective Pixels |
1280(H)×720(V) |
| Electronic Shutter |
1/50s~1/100,000s |
1/60s~1/100,000s |
| Video Frame Rate |
25fps@720P |
30fps@720P |
| Synchronization |
Internal |
| Min. Illumination |
[email protected](AGC ON), 0Lux IR on |
| Video Output |
1-channel BNC HDCVI high definition video output |
| Camera Features |
| Max. IR LEDs Length |
20m, Smart IR |
| Day/Night |
Auto(ICR) / Color / B/W |
| Noise Reduction |
2D |
| Lens |
| Focal Length |
3.6mm (2.8mm, 6mm, 8mm optional) |
| Angle of View |
H: 79.7º(103.4º/52.2º/39.9º) |
| Mount Type |
M12 |
| General |
| Power Supply |
DC12V±10% |
| Power Consumption |
Max 2.5W |
| Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
| Transmission Distance |
Over 500m via 75-3 coaxial cable |
| Ingress Protection |
IP66 |

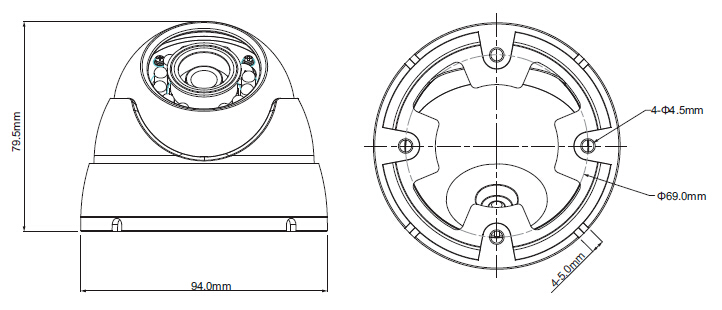

| Dimensions |
Φ94.0mm×79.5mm |
| Weight |
0.35kg | .jpg) | |
| |
|
|
|
| |
|
| |
| |
| |
| |
| |
| | |
