::DAHUA:: |
| |
|
|
| |
|
:: Dahua Camera 720TVL HDIS :: |
| DH-DW181R |
 |
|
|
|
DW181R | |
Overview |
>1/3" HDIS
>High resolution of 720TVL
>Day/Night(ICR), AWB, AGC, BLC
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs length 20m, Smart IR
>DC12V |
|
 | |
| Model |
DH-CA-DW181RP |
DH-CA-DW181RN |
| Camera |
| Image Sensor |
1/3" HDIS |
| Effective Pixels |
960(H)×480(V) |
| Horizontal Resolution |
720TVL |
| Electronic Shutter |
1/50s~1/100,000s |
1/60s~1/100,000s |
| Synchronization |
Internal |
| Min. Illumination |
[email protected](AGC ON), 0Lux IR on |
| S/N Ratio |
More than 65dB (AGC Off) |
| Video Output |
1Vp-p Composite Output (75Ω/BNC) |
| Camera Features |
| Max. IR LEDs Length |
20m, Smart IR |
| Day/Night |
Auto(ICR) / Color / B/W |
| Noise Reduction |
2D |
| Lens |
| Focal Length |
3.6mm (6mm optional) |
| Angle of View |
H: 70º(46.5º) |
| Mount Type |
M12 |
| General |
| Power Supply |
DC12V±10% |
| Power Consumption |
Max 2.4W |
| Working Environment |
-40°C~+60°C / Less than 90%RH (no condensation) |

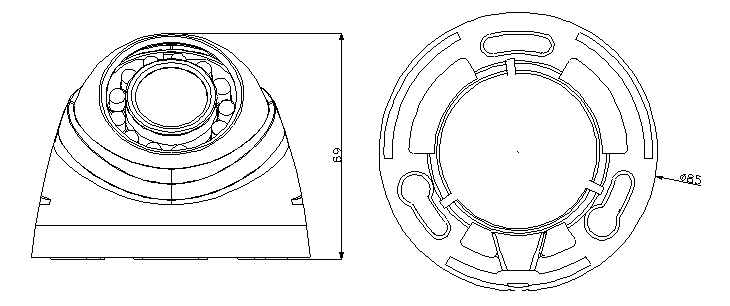

| Dimensions |
Φ85mm×69mm |
| Weight |
0.1kg |  | |
| |
|
|
|
|
|
| |
| |
| |
| |
| |
| | |
